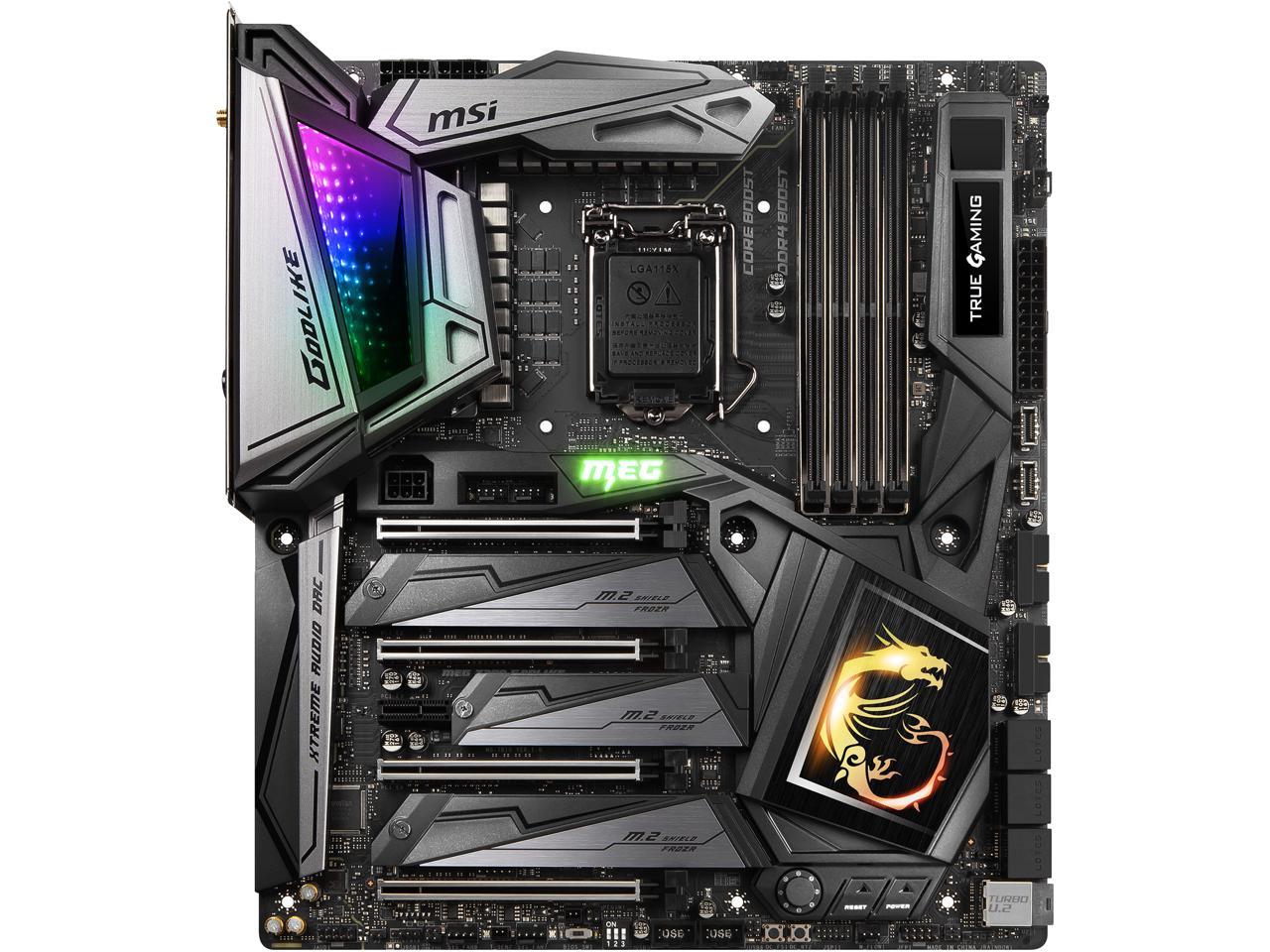

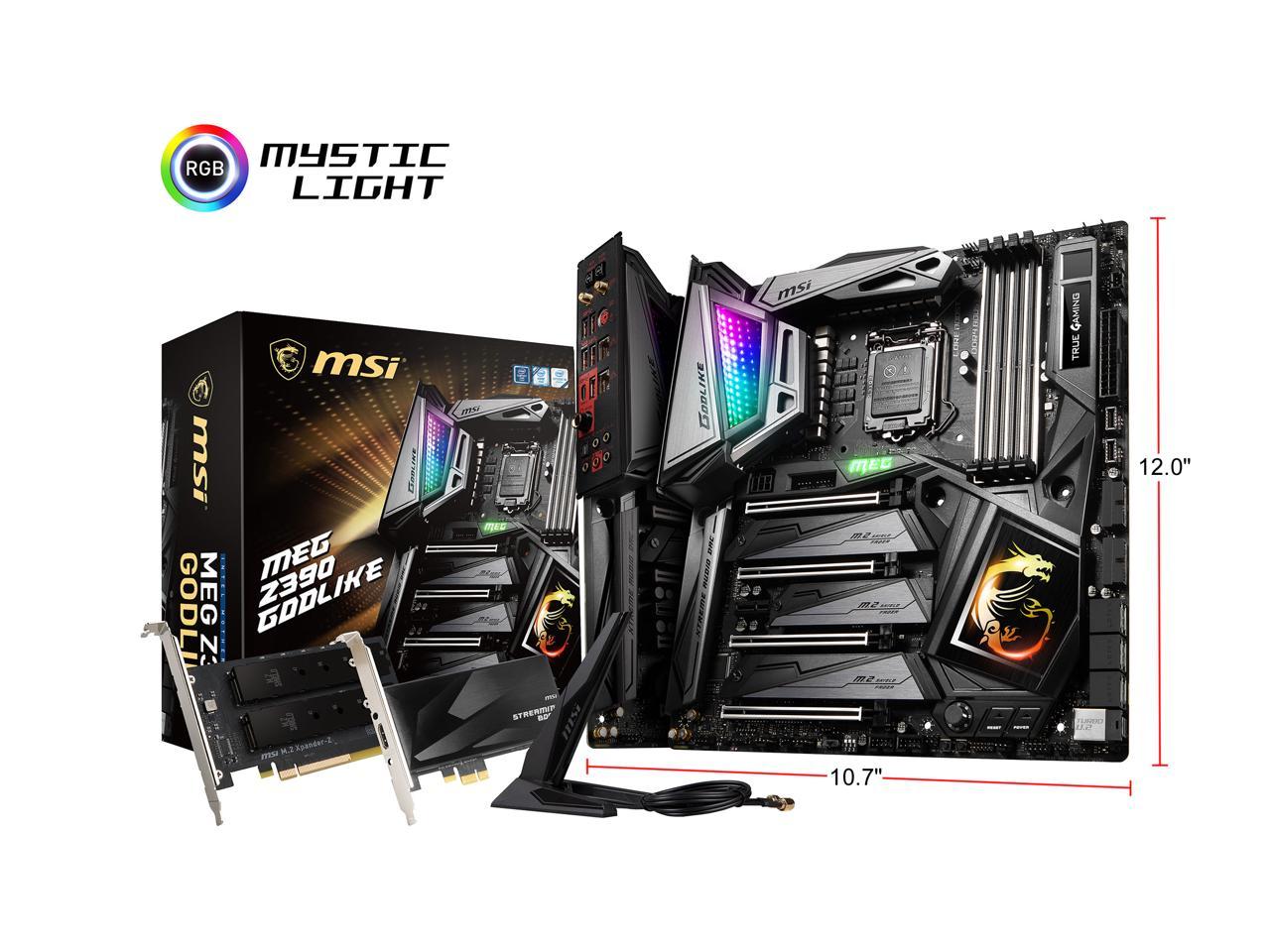

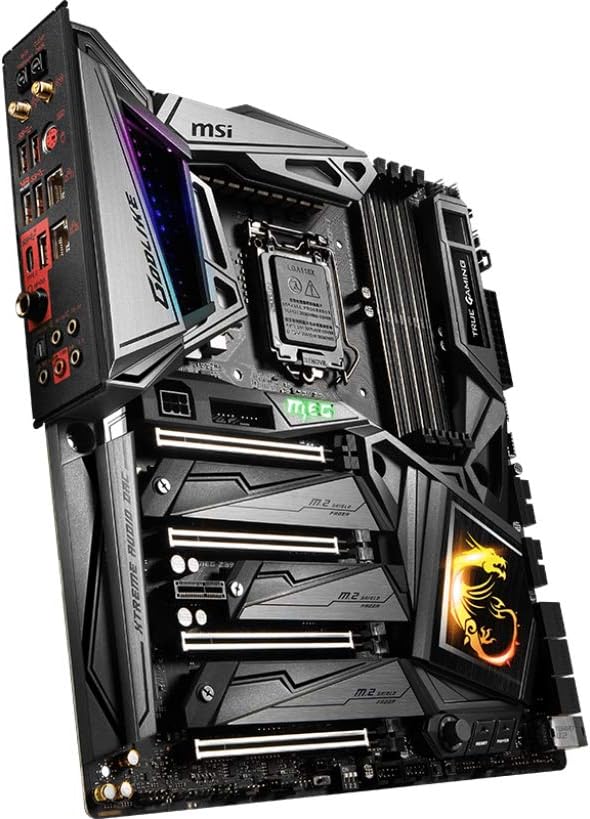

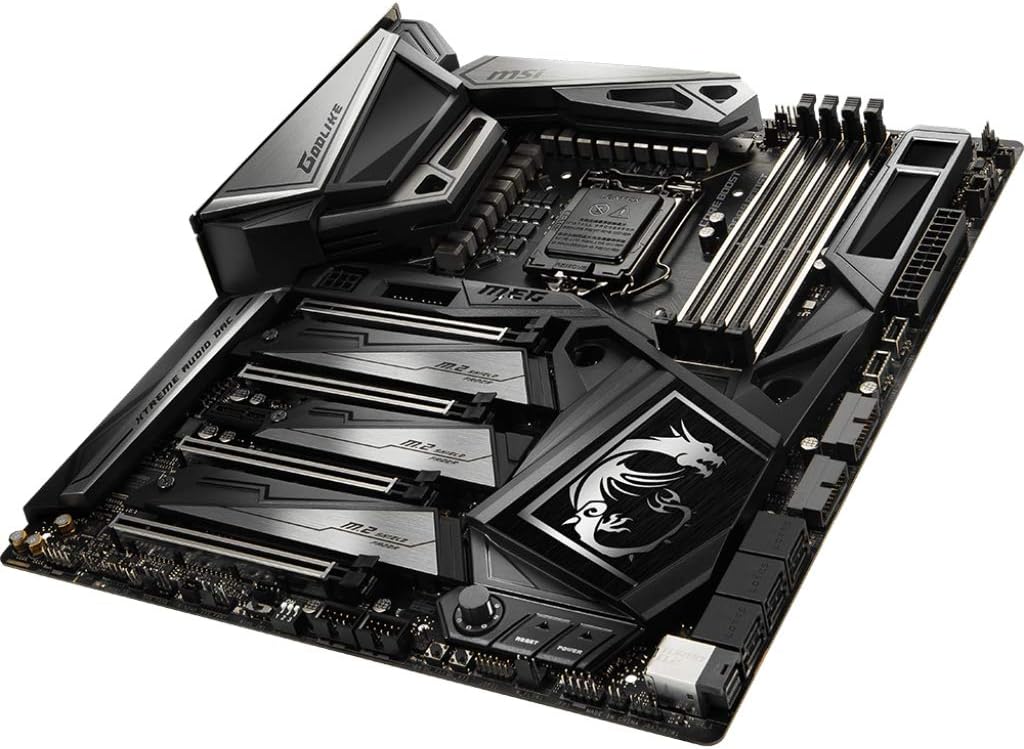

Name: MSI MEG Z390 GODLIKE LGA 1151 (300 Series) Intel Z390 SATA 6Gb/s USB 3.1 Extended ATX Intel Motherboard（Renovation）
SKU: cnx000028
Price: 442.68 USD
Availability: InStock

Brand

MSI

Model

MEG Z390 GODLIKE

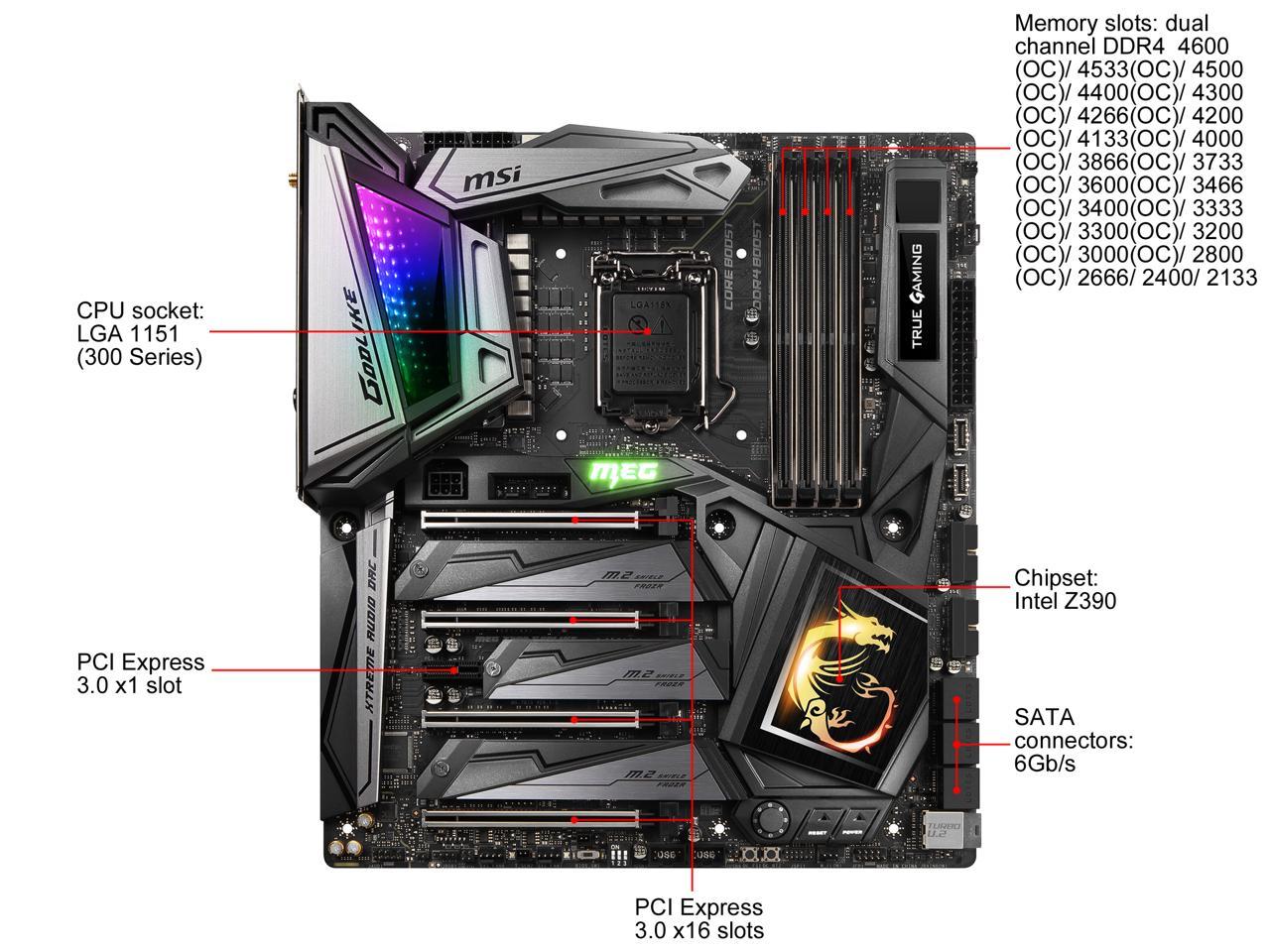

Supported CPU

CPU Socket Type

LGA 1151 (300 Series)

CPU Type

Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
* Not backward compatible with older generation of LGA 1151 CPUs

Memory

Number of Memory Slots

4x288pin (DDR4)

Memory Standard

DDR4 4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133

Maximum Memory Supported

64GB

Channel Supported

Dual Channel

MEG Z390 GODLIKE

ONE BOARD TO RULE THEM ALL

X299

Pre-Installed I/O Shielding

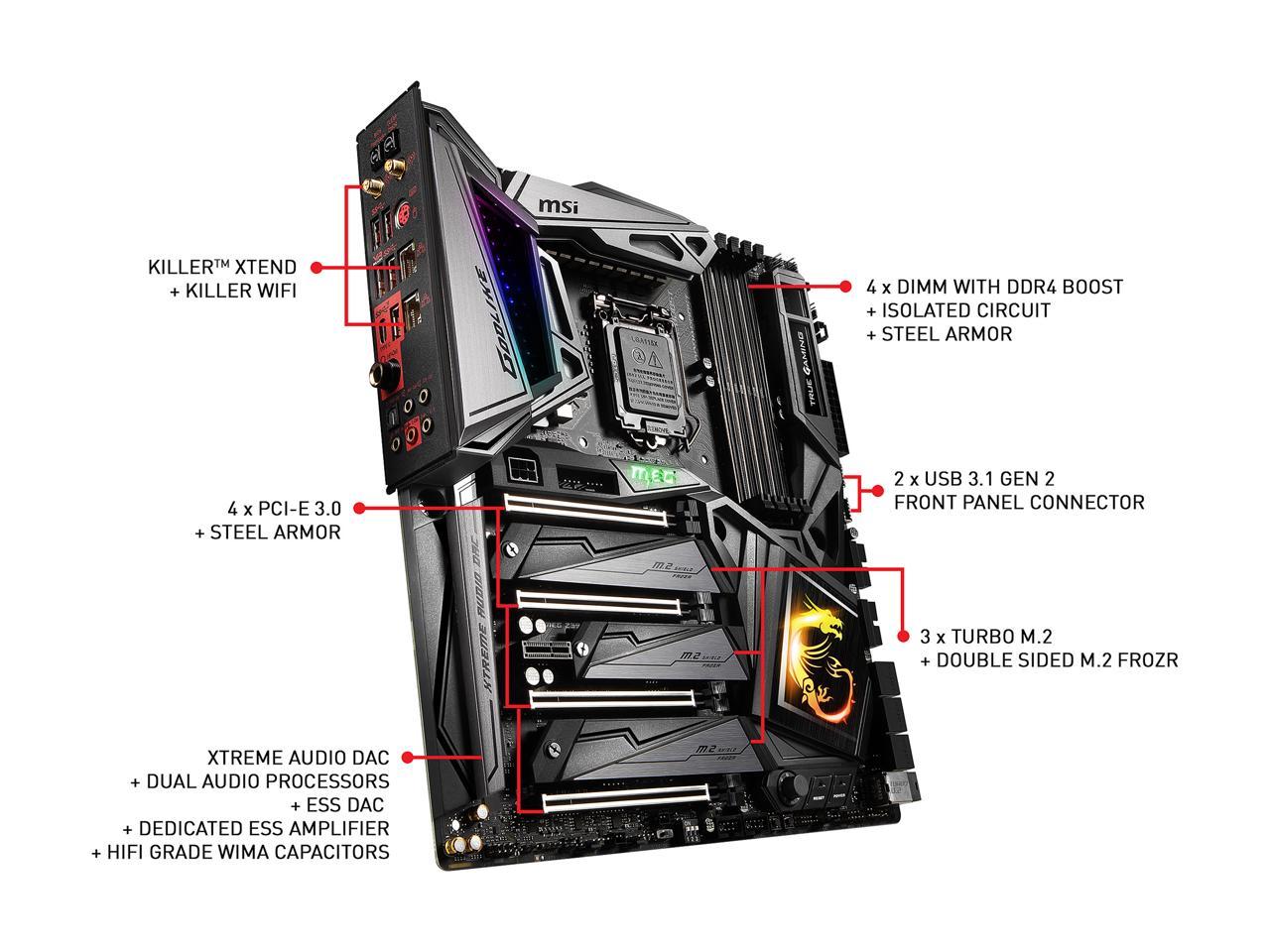

2	Clear CMOS & FlashBack+
3	Killer™ xTend
4	6.35mm headphone out
5	Golden Audio Jacks with S/PDIF

6	Mystic Light Infinity Customizable RGB lighting with infinity mirror
7	Solid heatsink with RGB LED Stay cool and customize colors
8	Dynamic Dashboard Built-in OLED display
9	DDR4 Boost with Steel Armor Optimized traces and isolated memory circuitry
10	Triple Turbo M.2 with Shield FROZR 3x M.2 SSDs, sustain maximum M.2 SSD performance
11	Turbo U.2 with Steel Armor NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4
12	Game Boost Button Shift to one of 8 preset gears for performance
13	Xtreme Audio DAC with 6.3mm headphone Optimized gaming audio with Nahimic

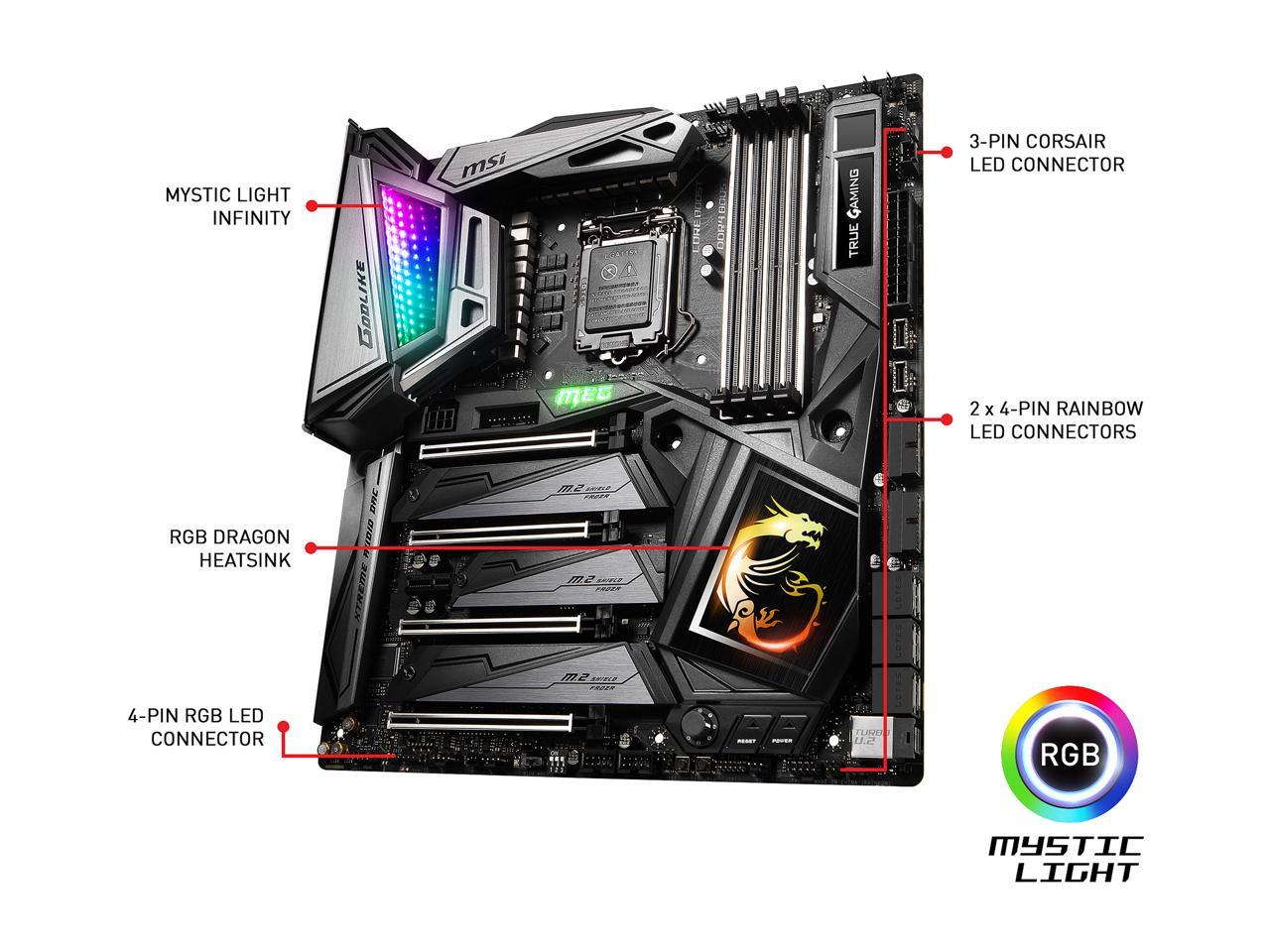

MYSTIC LIGHT INFINITY

Mystic Light Infinity brings together colorful lighting and an infinity mirror for deceptively endless light effects. Personalize your PC with 16.8 million colors and 17 effects with the Mystic Light APP.

Z390

X299

CORE BOOST

Core Boost technology combines MSI’s premium circuit layout and digital power design to deliver undistorted current to the CPU with pin-point precision. Core Boost not only sustains multi-core CPUs, but also creates the perfect conditions for CPU overclocking.

X299

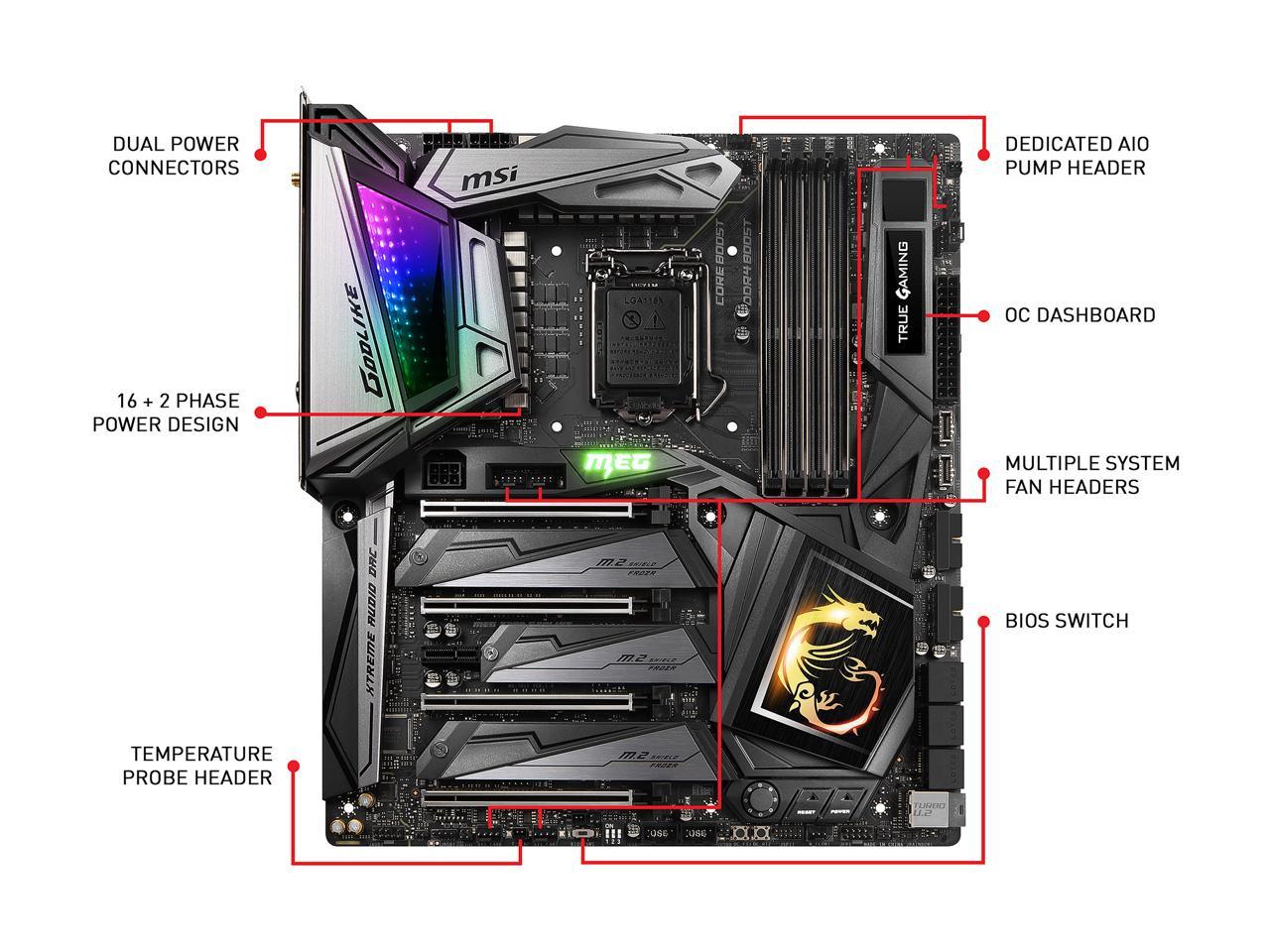

8+4 POWER CONNECTORS

Tap into extra power when needed with 8+4 pin connectors and unleash more performance with extreme overclocking.

DESIGNED FOR UNLIMITED PERFORMANCE

MSI Z390 motherboards are optimized to maximize the performance of 9th Gen Intel® Core™ processors. Choose MSI and unleash the full potential of your system with an optimized power delivery design and load line calibration.

Z390

MAXIMIZE YOUR USB DEVICE PERFORMANCE

Transfer your favorite games, music and videos over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!

BEST COMPATIBILITY

Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing during games.

BECOME AN MSI DRAGON FAN AND GET REWARDED

MSI is keen to hear from you! Share your product experience and get rewarded. Your feedback is appreciated. Become an MSI Dragon Fan today!

Onboard LAN
LAN Chipset	2 x Killer E2500 Gigabit LAN controller
Max LAN Speed	2 x 1Gbps
Wireless LAN	Killer 1550 Chipset – The Wireless module is pre-install in the M2_4 (Key-E) slot – Supports Wi-Fi 2×2 802.11 AC
Bluetooth	Supports Bluetooth 4.1, 3.0+HS

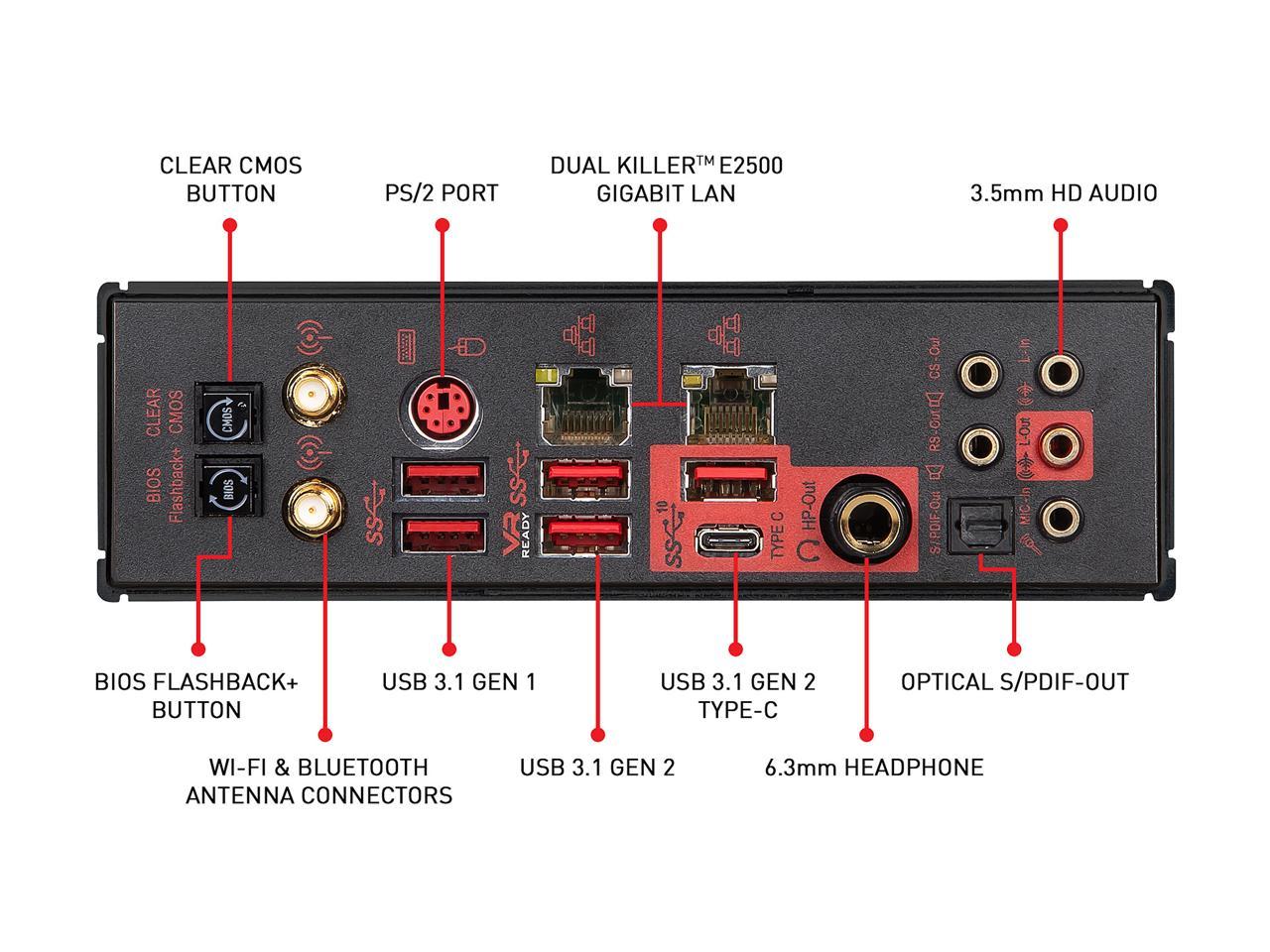

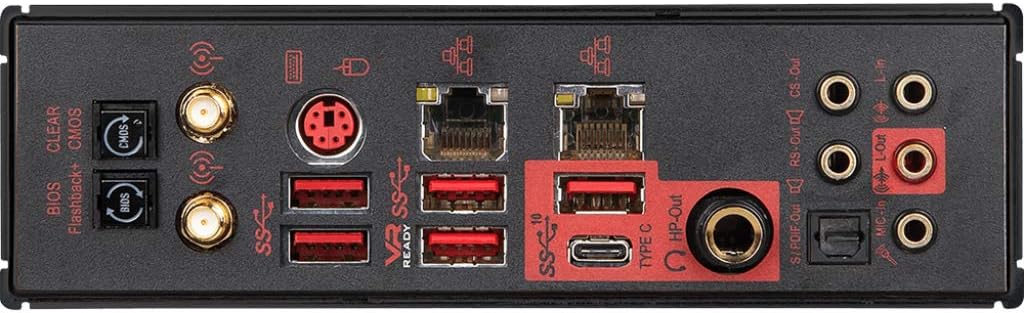

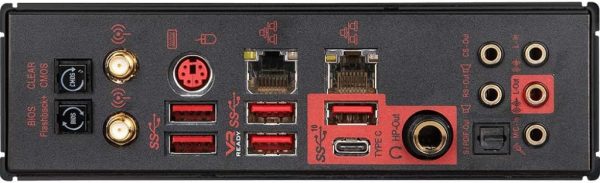

Rear Panel Ports
PS/2	1
RJ45	2 x RJ45
USB 3.1	3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports 2 x USB 3.1 Gen1 (SuperSpeed USB) ports
USB Type-C	1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port
S/PDIF Out	1 x Optical
Audio Ports	5 x HD Audio Connectors 1 x 6.3mm headphone out
Antenna Connectors	Wi-Fi /Bluetooth Antenna Connectors
