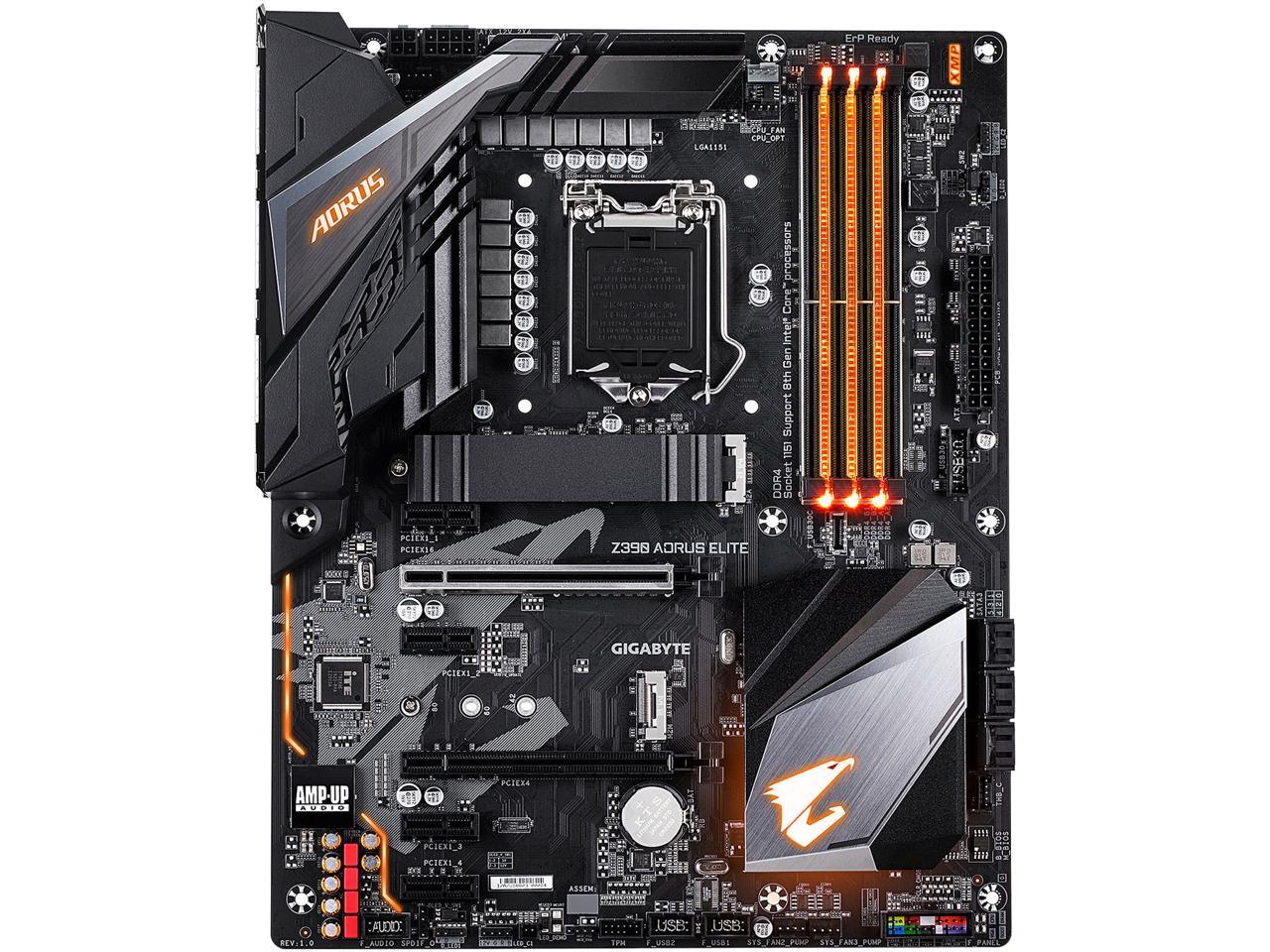

GIGABYTE Z390 AORUS ELITE LGA 1151 (300 Series) Intel Z390 SATA 6Gb/s ATX Intel Motherboard
$205.96$223.43 (-8%)

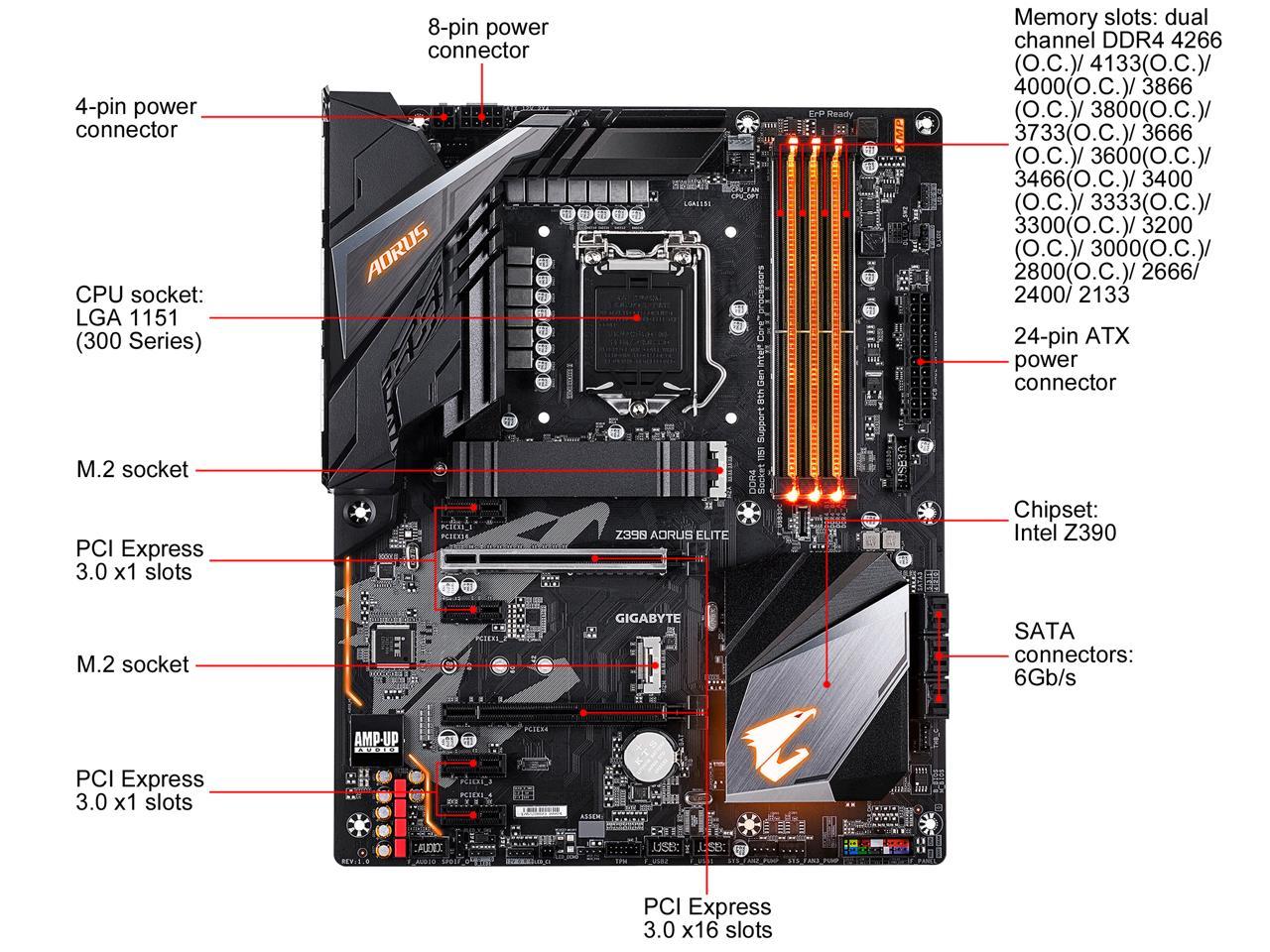

· Supports Intel 8th & 9th Gen Core i9/i7/i5/i3, Celeron, and Pentium Processors
· Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
· Integrated I/O Shield
· Intel Optane Memory Ready
· 12+1 Phases Digital VRM Solution with DrMOS
· Advanced Thermal Design with Screw Mounted Heatsinks
· ALC1220-VB Enhance 114dB (Rear) / 110dB (Front) SNR in Microphone
· Intel Gigabit LAN with cFosSpeed
· RGB FUSION with Multi-Zone LED Light Show Design, Supports Addressable LED & RGB LED Strips
· Smart Fan 5 with Hybrid Fan Headers with FAN STOP
· Front USB 3.1 Gen 1 Type-C Header
· Dual M.2 with Single Thermal Guard
· CEC 2019 Ready
- Supports 9th and 8th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel® Optane™ Memory Ready
- 12+1 Phases Digital VRM Solution with DrMOS
- Advanced Thermal Design with Multi-cuts Heatsinks and Heatpipe
- Onboard Intel® CNVi 802.11ac 2×2 Wave 2 Wi-Fi
- ALC1220-VB Enhance 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors
- Intel® Gigabit LAN with cFosSpeed
- RGB FUSION with Multi-Zone LED Light Show Design, Supports Addressable LED & RGB LED Strips
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Front USB 3.1 Gen 1 Type-C™ Header
- Dual Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal Guards
- Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
- CEC 2019 Ready, Save Power With a Simple Click

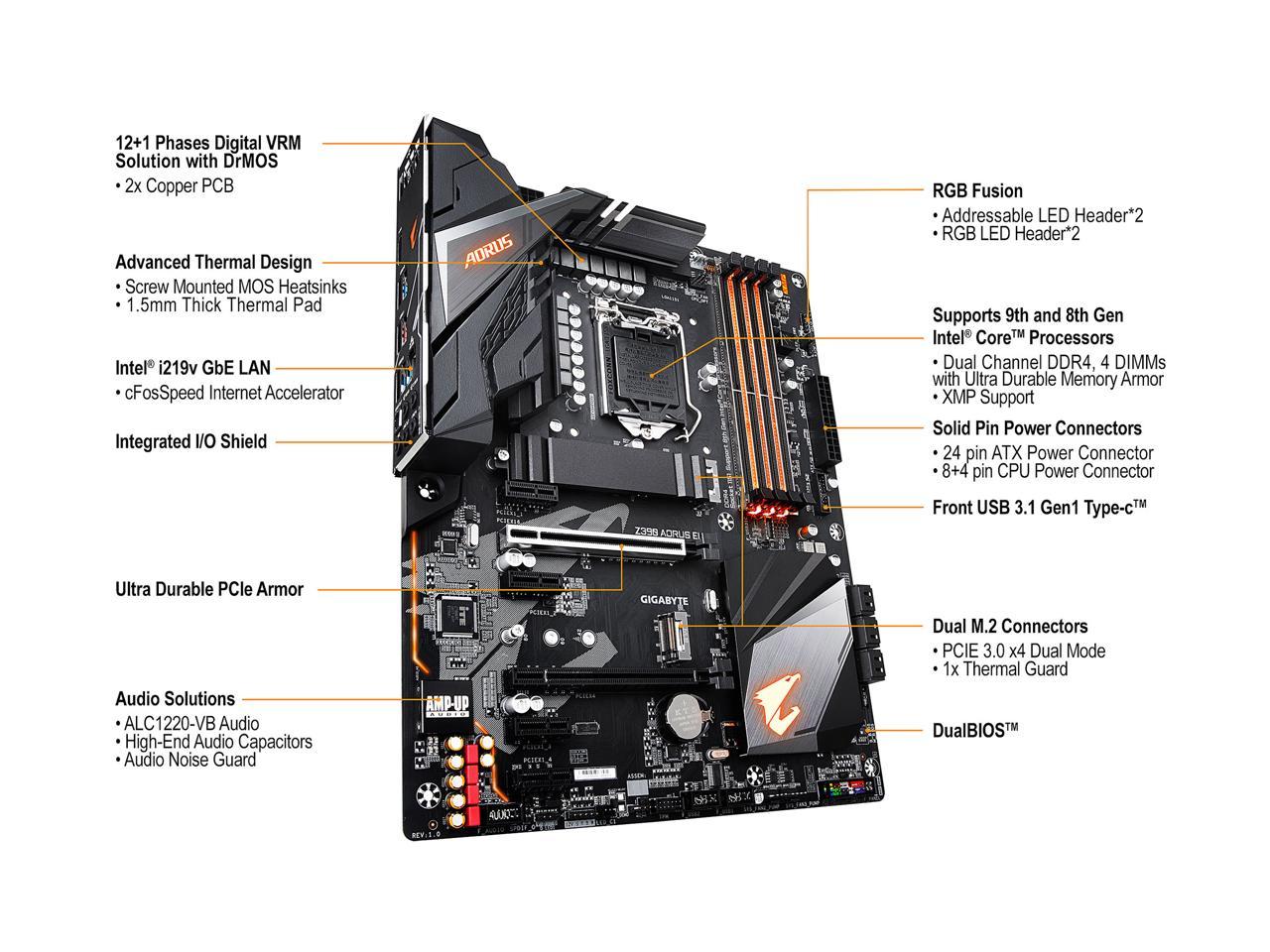

- 12+1 Phases Digital VRM Solution with DrMOS
2x Copper PCB - Advanced Thermal Design
Screw Mounted MOS Heatsinks
Heat Pipe
1.5mm Thick Thermal Pad - Intel i219v GbE LAN
cFosSpeed Internet Accelerator - Integrated I/O Shield
- Ultra Durable PCIe Armor
- Audio Solutions
ALC1220-VB Audio
High-End Audio Capacitors
Audio Noise Guard
- DualBIOS™
- Dual M.2 Connectors
PCIe 3.0 x4 Dual Mode
1x Thermal Guard - Front USB 3.1 Gen1 Type-C
- Solid Pin Power Connectors
24 pin ATX Power Connector
8+4 pin CPU Power Connector - Supports 9th and 8th Gen Intel Core Processors
Dual Channel DDR4, 4 DIMMs with Ultra Durable Memory Armor
XMP Support - RGB FUSION
Addressable LED Header*2
RGB LED Header*2
Z390 AORUS ELITE motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 8-core 9th Gen Intel® Core™ processors.
GIGABYTE’s exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4133MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboards.
What is XMP?
DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.
* XMP Profile support may vary depending on memory module. Please visit www.aorus.com to see the complete validated memory support list. Product features may vary by model.
Z390 AORUS ELITE uses high performance thermal design with screwed mounted heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.
-
MOSFET Heatsinks
Multiple cuts on heatsinks improves thermal performance by increasing heat dessipation surface and maintain stylish aesthetic.
-
Thick Thermal Pad
By using 1.5mm thicker thermal pad with well contact, more efficient heat dissipation.
-
M.2 Thermal Guard
Covered with 110 M.2 heatsinks keep SSD performance.

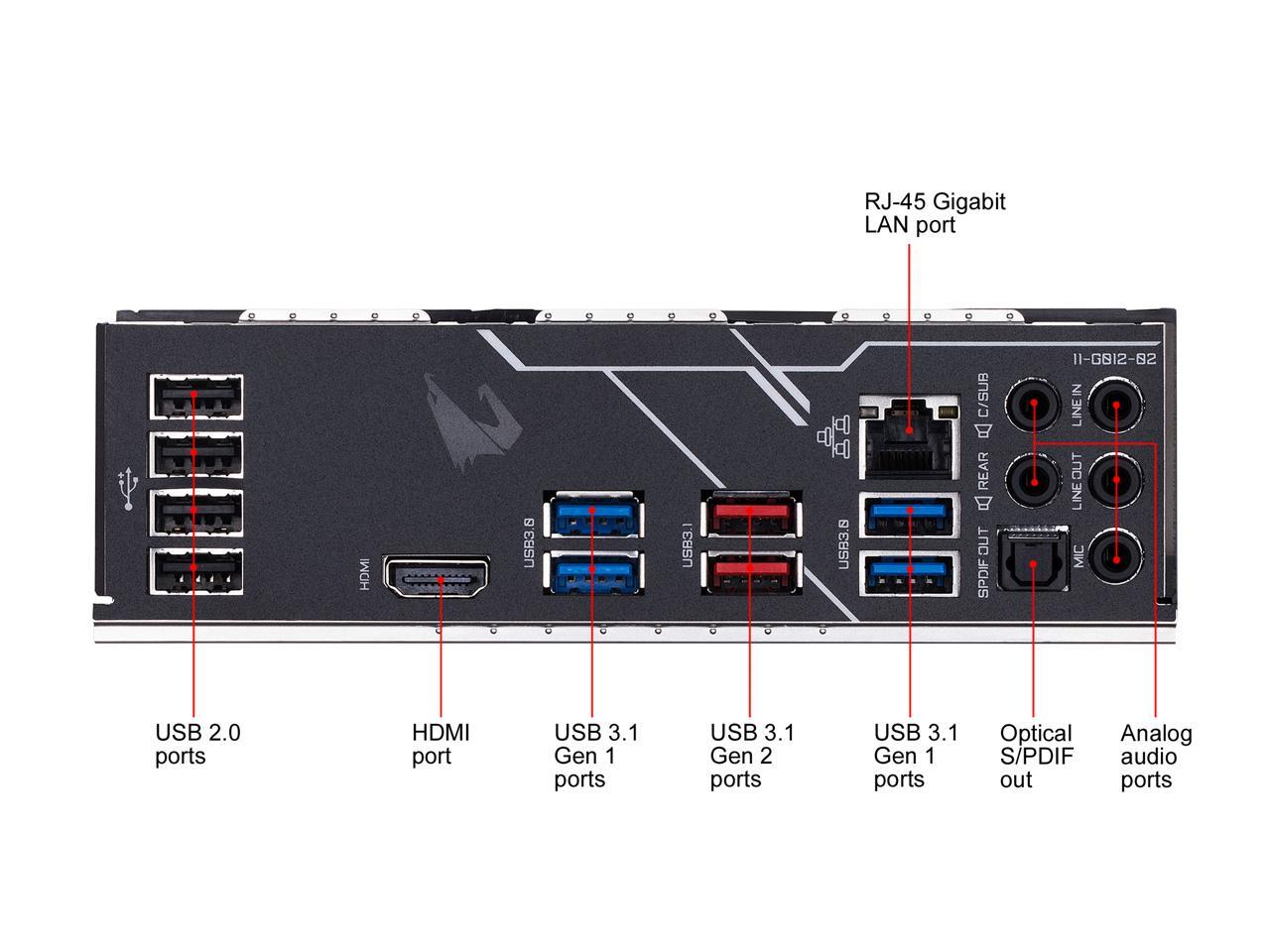

With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier.
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
AORUS partners very closely with memory vendors from around the world to ensure that modules offered by popular memory brands are compatible with AORUS Motherboards. AORUS has verified over 1000+ different modules to ensure performance in a AORUS built system.
All New Realtek High-End HD Audio Codec
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion. With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).
No More Confusion During In-Game Voice Chat
Microphone input with higher front dynamic range allows gamers to hear more clearly. No more misunderstandings, no more confusing GO! GO! GO! as NO! NO! NO!
The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.
The Z390 AORUS Platform supports Intel’s latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.
Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Equipped with next generation connectivity AORUS Gaming Motherboards already support the chassis of the future. The onboard USB Type-C header for USB 3.1 Gen2 makes access convenient when connecting a USB 3.1 Gen2 drive or charging your new mobile device.
- The World’s Next Universal Connector
- Reversible USB Type-C with USB 3.1 Gen 2
The latest USB 3.1 Gen 2 offers staggering 10Gb/s transfer speeds. 2x faster than USB 3.1 Gen 1 along with backwards compatibility with existing USB devices.
With AORUS Motherboards, RGB Fusion is even better with Addressable LEDs.* RGB Fusion offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on Z390 Series AORUS Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
AORUS Motherboards will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion with Addressable LEDs comes with new patterns and various speed settings with more to come.
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.
With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colors on all supported products. You can even set the LEDs to synchronize with your favorite music or have them change colors to indicate the CPU temperature. For true lighting experts there is a dedicated product setting, which can be fully customized by individual area with its own effects.
Don’t just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.
With a dazzling array of products supported, RGB Fusion is the software that brings it all together, letting your accessories synchronize to the same beat. Customize all your LEDs how you like — have them match, dazzle and impress. Learn more about RGB Fusion
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.
- 5 Fan Pin Headers
- 6 Temperature Sensors
- All Hybrid Fan Headers
- Interoperable Fans and Sensors
- Supports High Current Fans up to 24W(2AX12V) with Over-Current Protection
- Intuitive UI for Fan Control
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
Choose from different modes, Quiet to Full Speed, to match your system usage preferences. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
Z390 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading.
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
Industry Leading Ultra Durable PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
AORUS’ exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference
Hardware Troubleshooting at a Glance
Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.
GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC’s most crucial components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a ‘Main BIOS’ and a ‘Backup BIOS’, protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.
The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators are tiny. With the G Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you frustration.
BIOS
New User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Optimized Memory Installation Reminder
Displays correct installation reminder message when user installs two memory modules but runs single channel mode.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.
GIGABYTE’s EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer.
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro! *Free 14 days XSplit Gamecaster + Broadcaster Premium License.
- Enjoy 14-days FREE seamless connection to any game server in the world
- Experience up to 60% overall connection improvement
- Receive FREE unlimited access to PC Gaming Launchpad, supporting over 800 MMO games
- Monitor your Game Ping and Connection Statistics continuously
To facilitate being the full streaming solution each AORUS motherboard includes TriDef SmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype. *Free 1 month TriDef SmartCam License.
Save power with a simple click
CEC Requirement : PC power consumption must be under a certain level when it’s in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.
