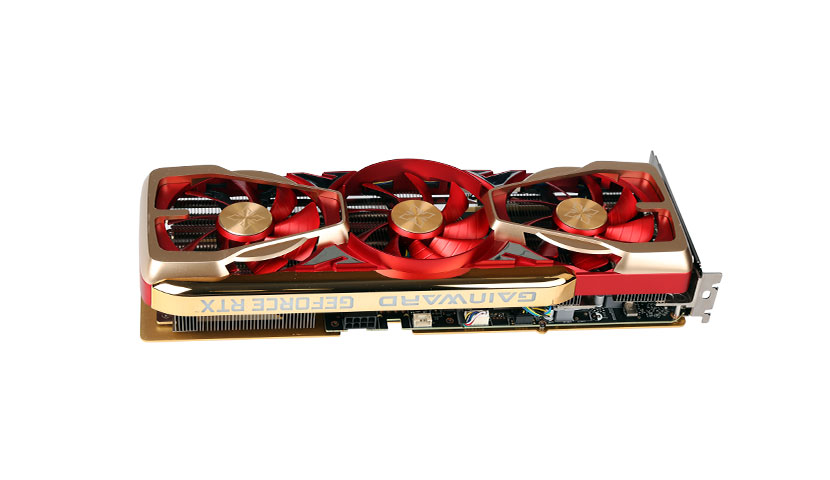

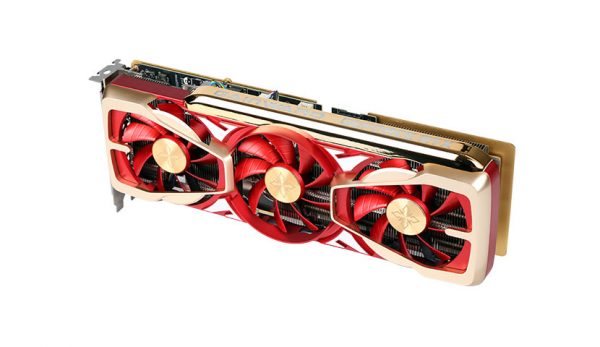

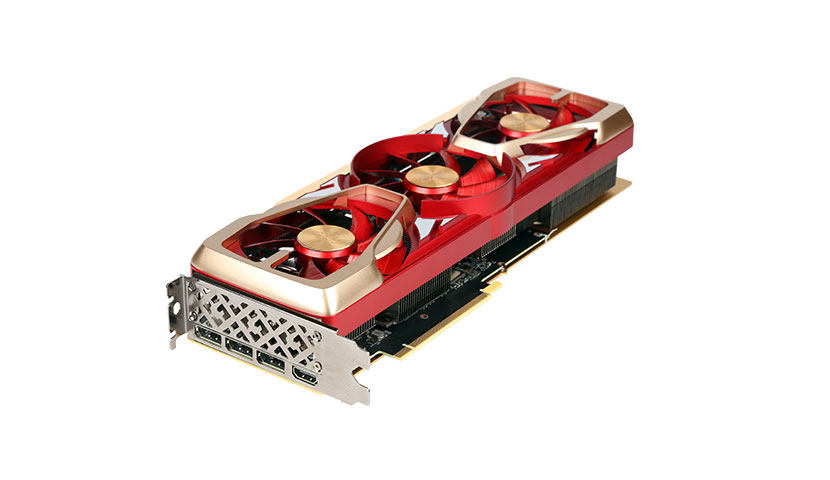

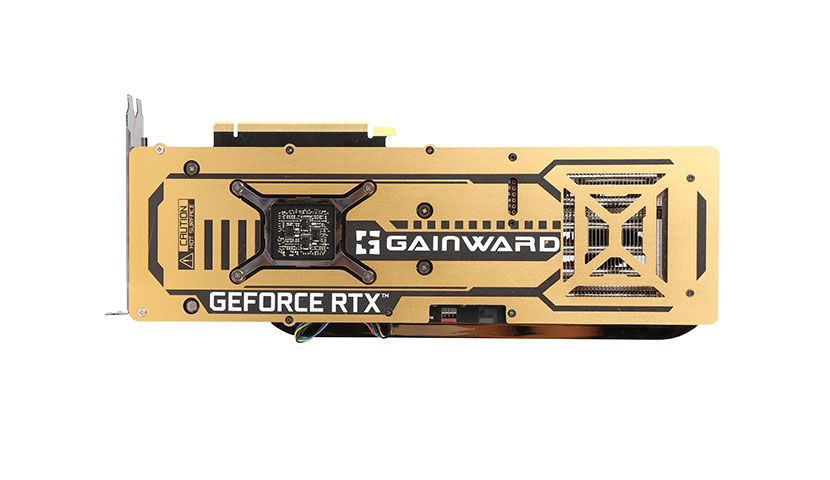

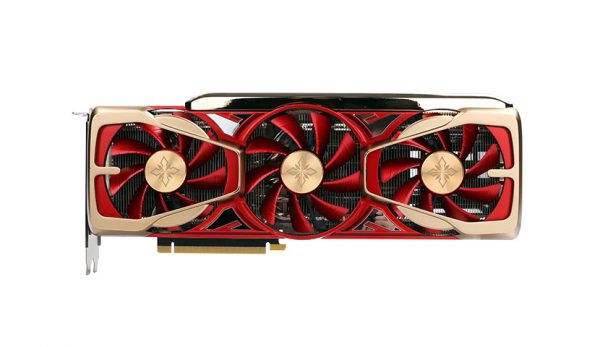

Gainward GeForce RTX 3070 8GB GDDR6 XingJiHongJue OC LHR Video Card

Specification

Chip manufacturer: NVIDIA
Graphics chip: GeForce RTX 3070
Display chip series: NVIDIA RTX 30 series
Craftsmanship: 8 nm
Core code: GA104-300
Core frequency: : 1755MHz
CUDA core: 5888 pcs

Video memory frequency: 14000MHz
Video memory type: GDDR6
Memory capacity: 8GB
Video memory bit width: 256bit
Maximum resolution: 7680×4320

Interface Type: PCI Express 4.0 16X
I/O interface: 1×HDMI interface, 3×DisplayPort interface
Power connector: 8pin

Graphics card type: Fever grade
Cooling method: Three-fan cooling (Xingji Hongjue radiator)
3D API: DirectX 12
OpenGL: 4.5
Support HDCP: Yes
HDCP: 2.3
Product Size: 329.5×136×52mm
Maximum power consumption: 220W
Recommended power: 650W

ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling
