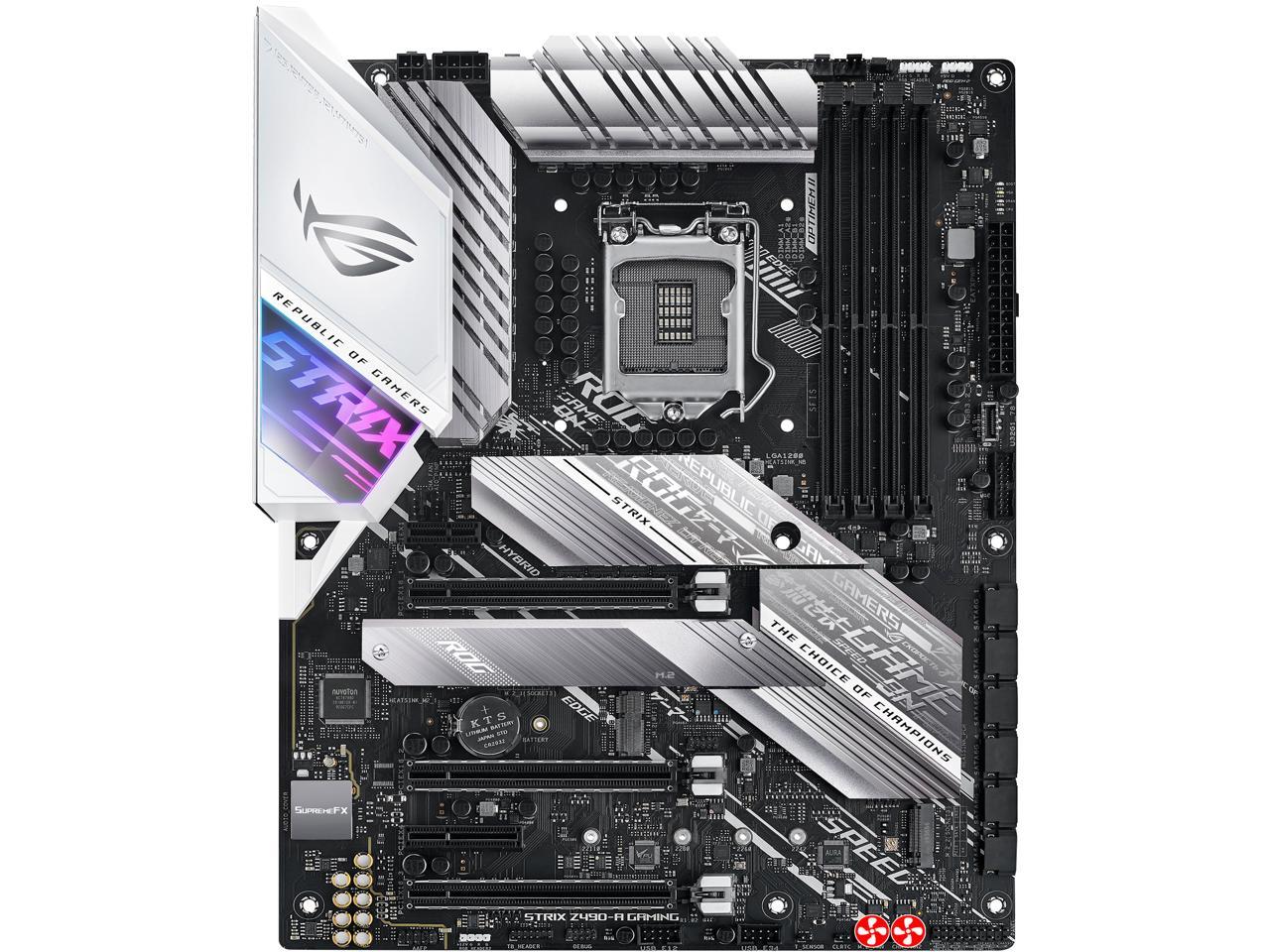

ASUS ROG STRIX Z490-A GAMING LGA 1200 (Intel 10th Gen) Intel Z490 SATA 6Gb/s ATX Intel Motherboard (12+2 Power Stages, DDR4 4600, Intel 2.5Gb Ethernet, USB 3.2 Gen 2, AURA Sync)
$204.96$224.28 (-9%)
- Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors

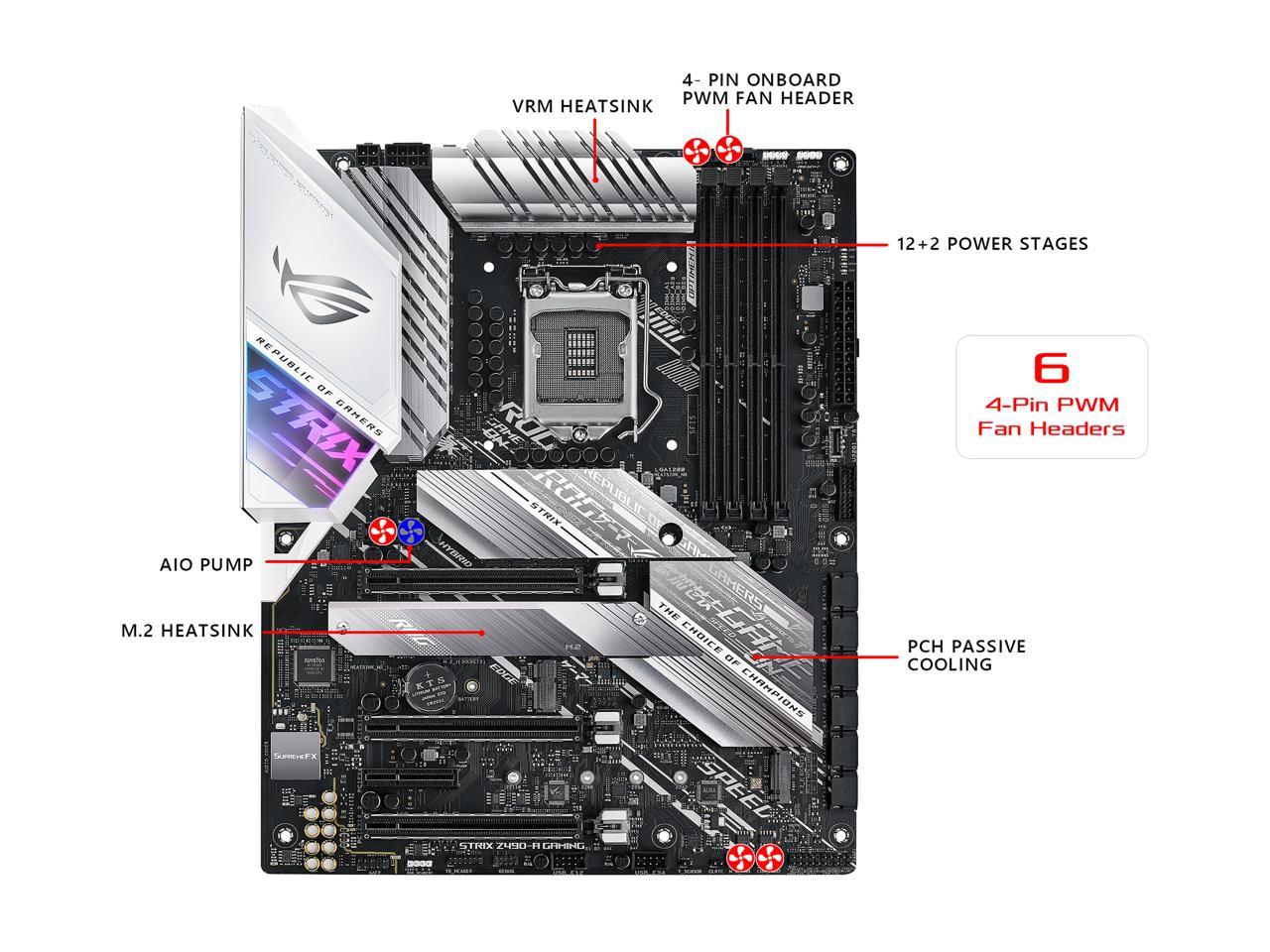

- Robust Power Solution: 12+2 Dr. MOS power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to provide reliable power when pushing CPU performance to the limit
- Optimized Thermal Design: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- High-performance Gaming Networking: On-board Intel 2.5Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI 1.4 and DisplayPort 1.4 output, and featuring dual M.2, front panel USB 3.2 Gen 1 Type-C connector
- Industry-leading Gaming Audio: High fidelity audio with the SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III draws you deeper into the game action
.png)
The ROG Strix Z490-A Gaming motherboard is perfect if you’re looking for an eye-catching gaming build. Its cyberpunk-inspired aesthetics embodies the vibrant spirit of ROG Strix, and sports an all-new white and silver color scheme. Looks aside, ROG Strix Z490-A Gaming is designed to cope with the demands of 10th Generation Intel® Core™ processors through its boosted power delivery and an improved cooling design, while featuring AI enhancements and intuitive dashboards to help you overclock and tweak various parameters easily.

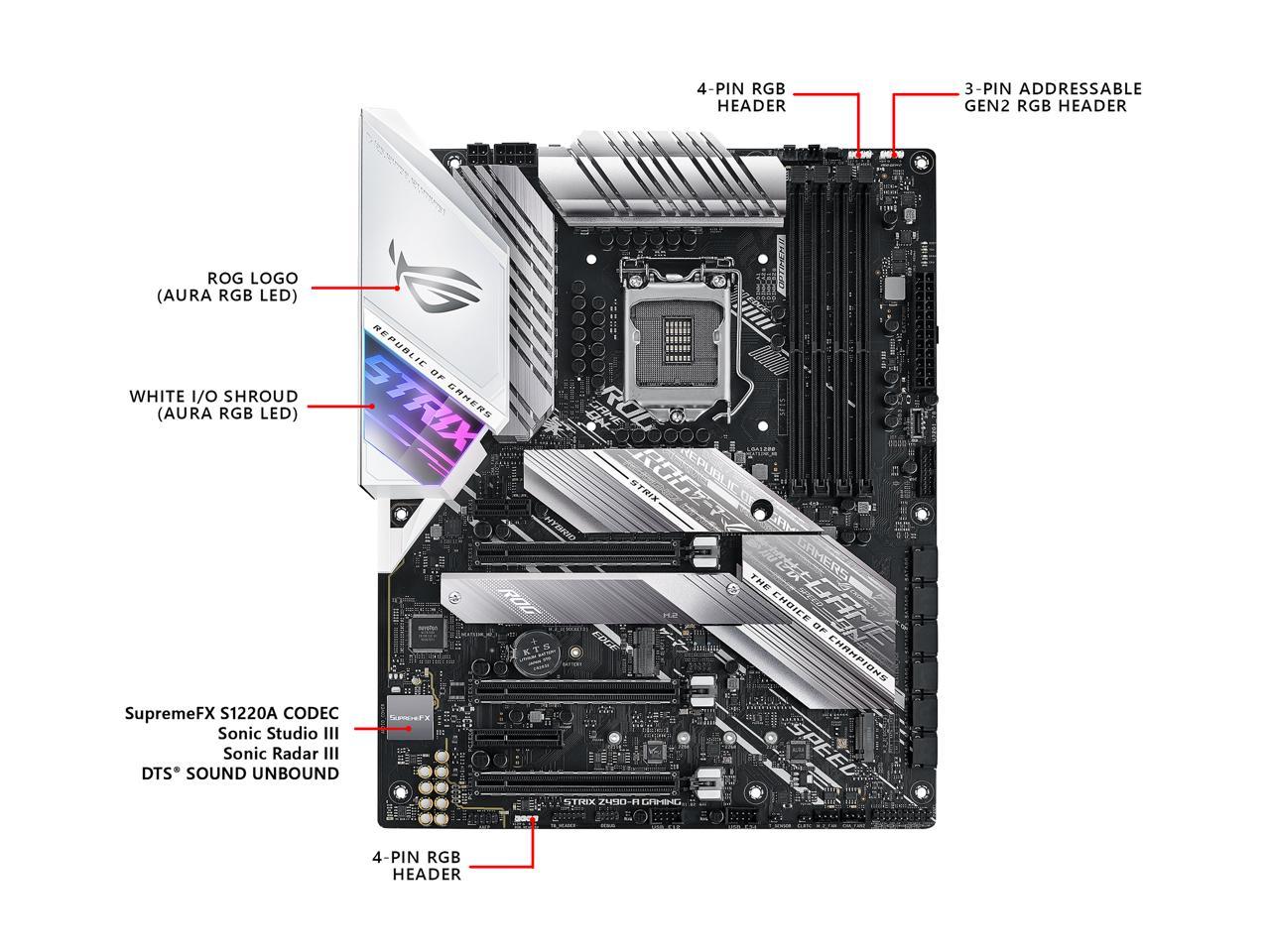

- 2 x 4-pin Aura RGB headers
1 x 3-pin Addressable Gen 2 RGB header - DDR4 4600 MHz (OC)

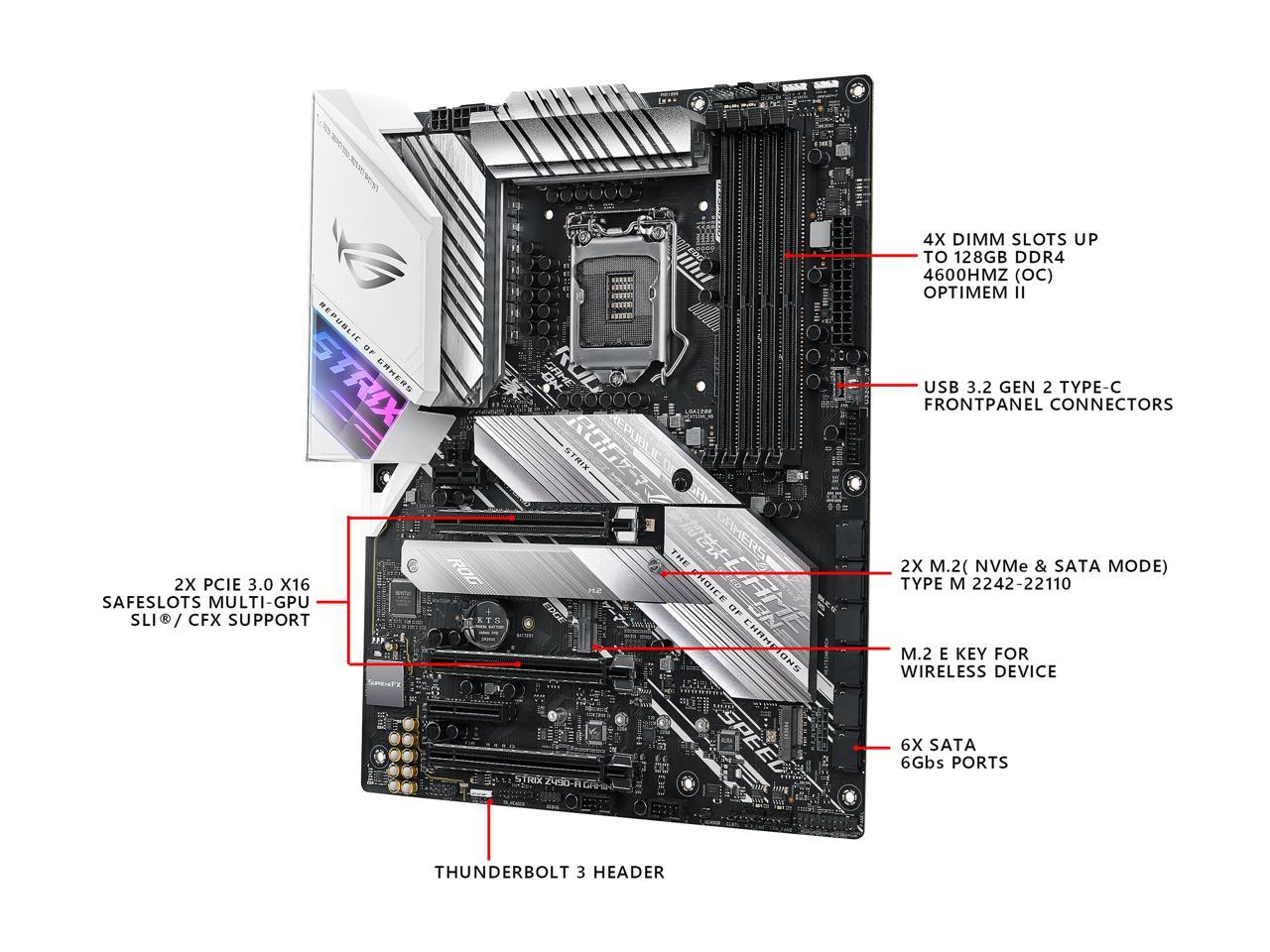

‧ 4 x DIMM
‧ Dual-channel
‧ OptiMem II - Intel® LGA 1200 Socket for 10th
Gen Intel® Core™, Pentium® Gold and
Celeron® processors - 1 x USB 3.2 Type-C front panel connector
- 4 x USB 3.2 Gen 1 ports
- 2 x M.2 Socket 3
‧ 1 x Type 2242-22110, supports SATA & PCIe 3.0 x4 modes
‧ 1 x Type 2242-22110, supports PCIe 3.0 x4 mode - M.2 E Key for wireless device support
- 6 x SATA 6Gb/s
- FlexKey

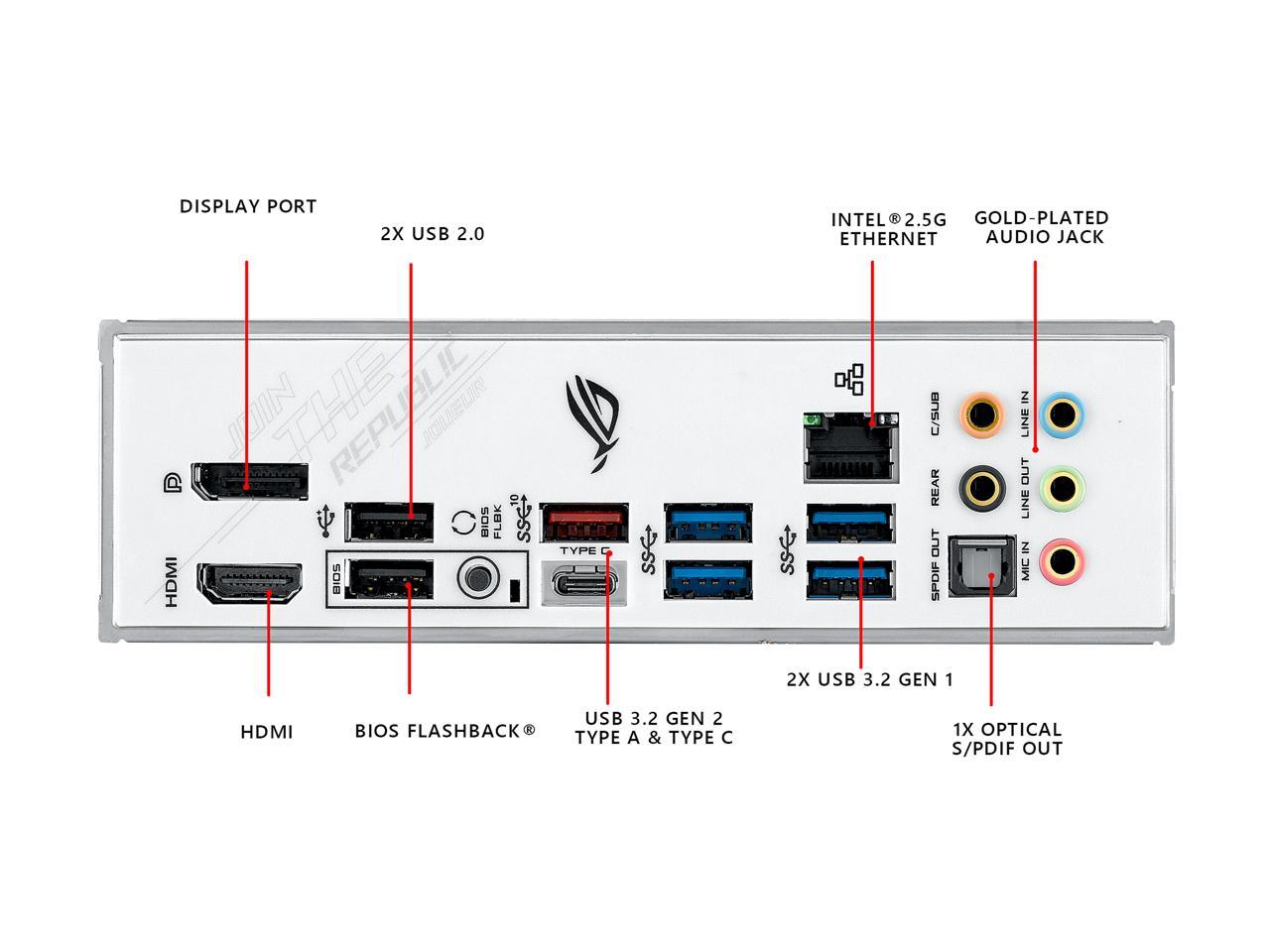

- ROG Patented Pre-mounted I/O Shield
‧ DisplayPort 1.4
‧ HDMI™ 1.4
‧ BIOS FlashBack™ button - 2 x USB 3.2 Gen 2 ports
‧ 1 x Type-A
‧ 1 x Type-C - Intel® I225-V Gigabit LAN
‧ ROG GameFirst VI
‧ Anti-surge LANGuard - Optical S/PDIF out
- 5 x Gold-plated audio jacks
- Multi-GPU CFX support
‧ 3 x PCIe 3.0 x16 Safeslots (support x 16, x8/x4/x4 modes)
‧ 1 x PCIe 3.0 x4 slot (supports x 2 modes)
‧ 1 x PCIe 3.0 x1 slot - SupremeFX S1220A CODEC
‧ Impedance sense
‧ High quality output and input
‧ SupremeFX shielding
‧ Dual OP amplifiers
Sonic Studio III
Sonic Studio Virtual Mixer
Sonic Radar III
DTS® Sound Unbound - Thunderbolt header
ALL-ROUND PERFORMANCE
ROG Strix Z490-A Gaming helps you get the most out of your gaming build with up-rated power delivery and optimized cooling. Intelligent controls lets you manage overclocking, cooling and networking settings easily, giving you everything you need to harness the full potential of your build for top-tier gaming performance.
M.2 Heatsink M.2 Fan Header
The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for A dedicated M.2 fan header helps keeps temperatures low for improved consistent performance and reliability. performance and longevity.
ROG AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU and cooling system to predict optimal voltage and frequency settings.
Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, and an auto-tuning option is available for beginners.
.jpg)
4600MHz
ROG Strix Z490-A Gaming supports up to 128GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk to enhance memory stability and compatibility, giving memory kits higher frequency margins.
.jpg)
PCIe 3.0 M.2
Two M.2 slots are available, with one supporting both SATA and PCIe 3.0 x4 modes, and the other supporting PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available.
Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. The automated CPU tuning feature of 5-Way Optimization leverages the same onboard intelligence as AI Overclocking,but goes further by running a Prime95 based stress test to deliver a result that’s well-tuned from the get-go.
.png)
Four onboard LEDs indicate power status, and any problem with the CPU, memory, graphics card or boot device for quick diagnosis.
.png)
The front-panel header lets you customize the reset button on the front-panel of your chassis to provide quick access to your choice of Aura lighting controls, DirectKey or system reset.
.png)
BIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without having memory or a CPU installed.
