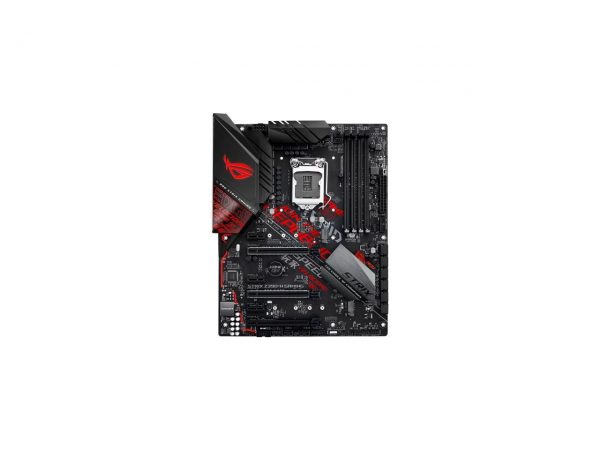

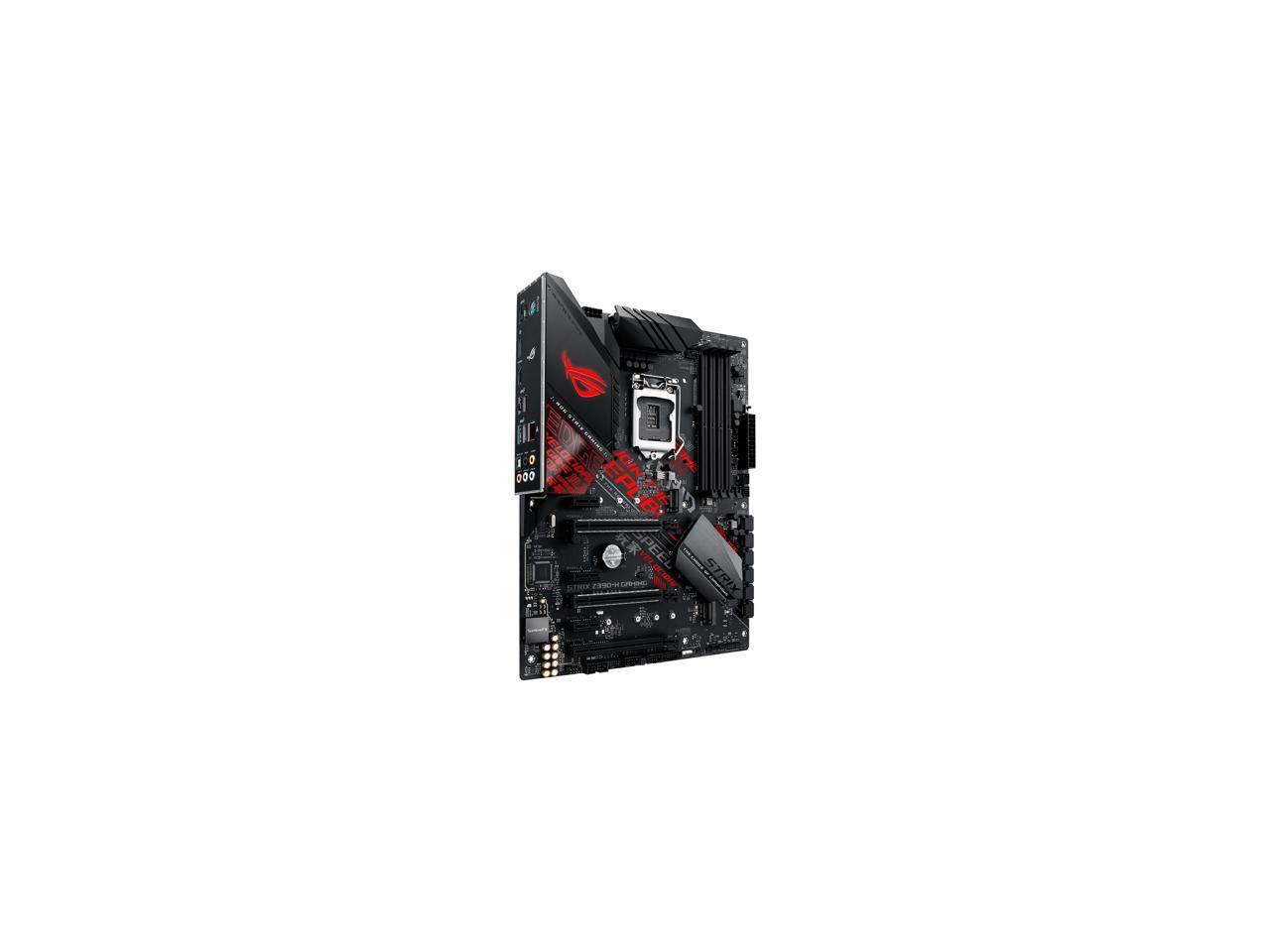

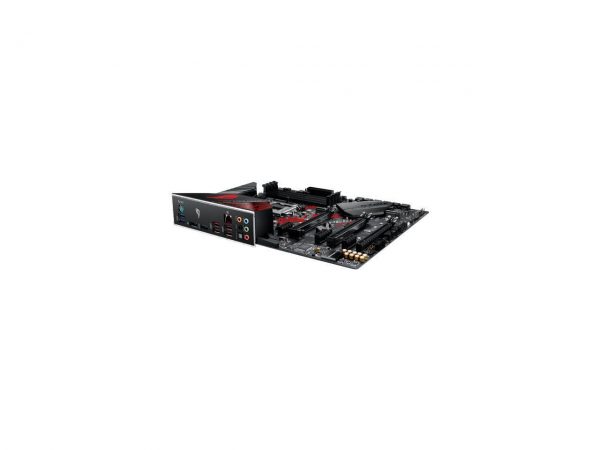

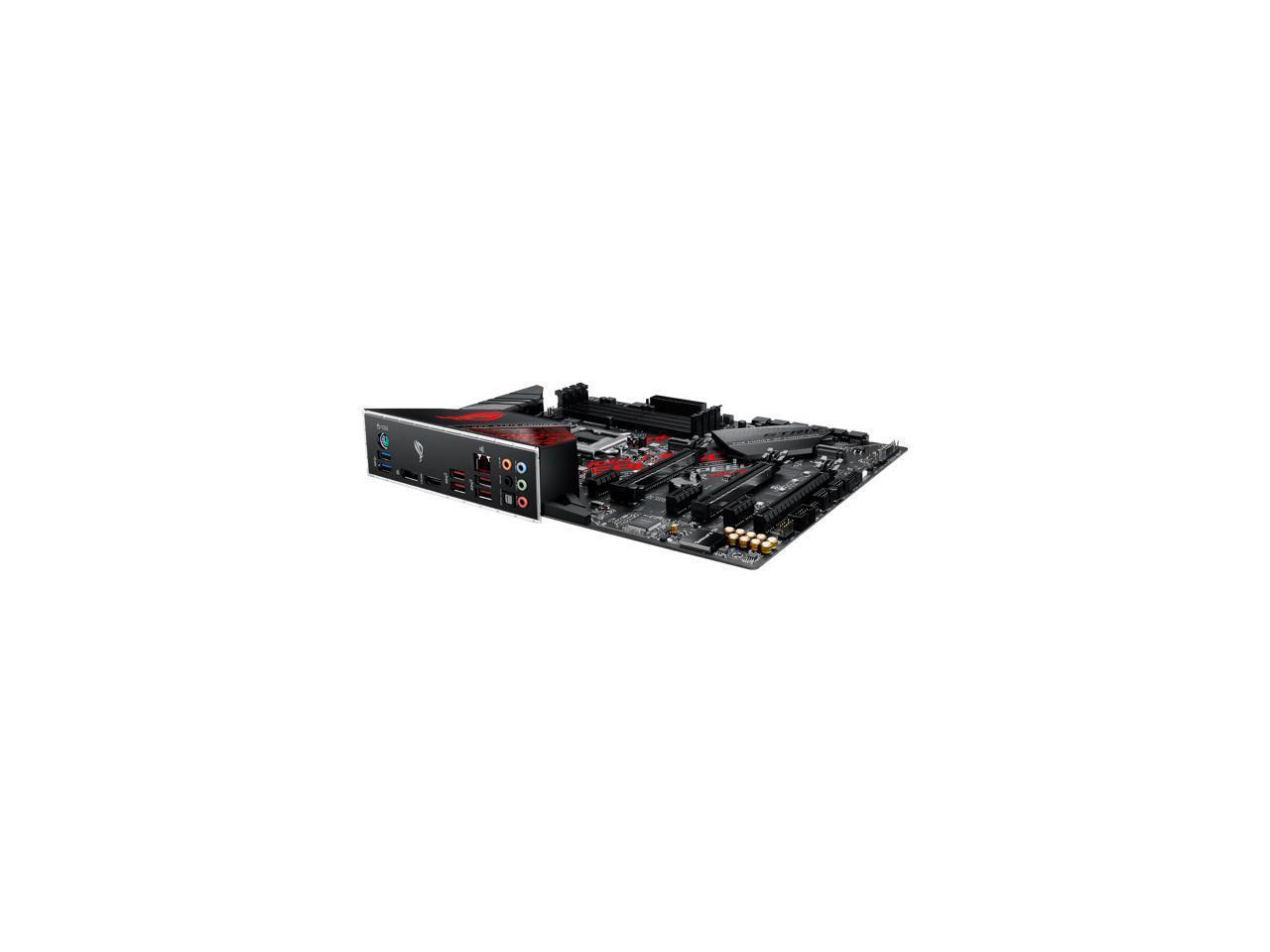

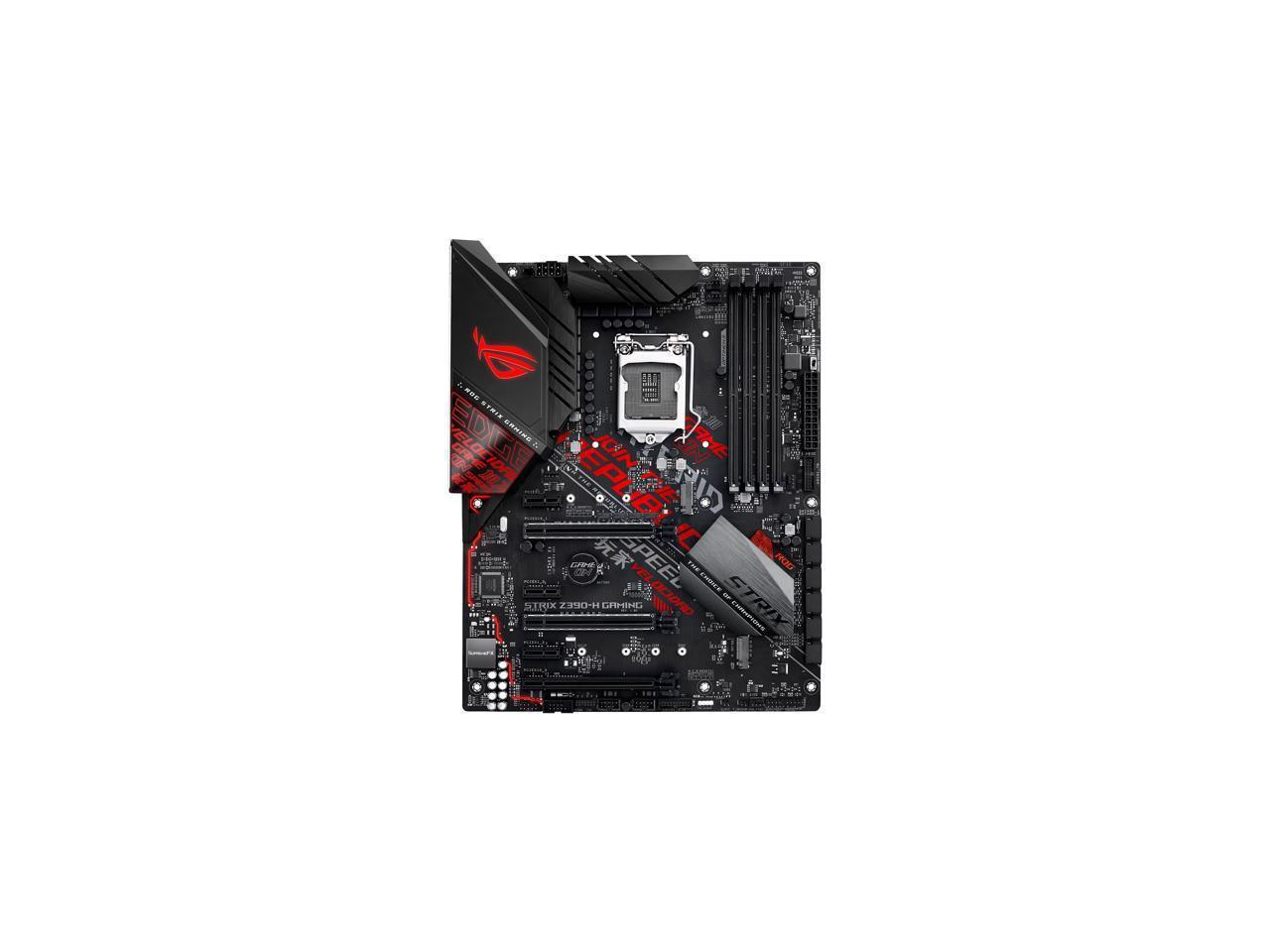

ASUS ROG Strix Z390-H Gaming Motherboard LGA1151 (Intel 8th and 9th Gen) ATX DDR4 DP HDMI M.2 USB 3.1 Gen2 Gigabit LAN

Brand：ASUS

Series：ROG

Model：Strix Z390-H Gaming

CPU Type：LGA 1151

Supported CPU Technologies：Supports Intel Turbo Boost Technology 2.0*
* Intel Turbo Boost Technology 2.0 support depends on the CPU type

Chipset：Intel Z390

Onboard Video Chipset：Integrated Graphics Processor – Intel UHD Graphics support
Multi-VGA output support: HDMI/DisplayPort
– Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
– Supports HDMI 1.4b withUHD, max. resolution 4096 x 2304 @ 24 Hz, 24 bpp or 3840 x 2160 @ 30 Hz, 24 bpp

Number of Memory Slots：4x288pin (DDR4)

Memory Standard：DDR4 4133+(OC)*/ 4000(OC)*/ 3866(OC)*/ 3733(OC)*/ 3600(OC)*/ 3466(OC)*/ 3400(OC)*/ 3333(OC)*/ 3300(OC)*/ 3200(OC)*/ 3000(OC)*/ 2800(OC)*/ 2666/ 2400/ 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Maximum Memory Supported：64GB

Channel Supported：Dual Channel

PCI Express 3.0 x16：8th Gen Intel Core Processors
2 x PCIe 3.0 x16 slots (support x16, x8/x8)
Intel Z390 Chipset
1 x PCIe 3.0 x16 slot (max. at x2 mode)

PCI Express x1：3 x PCIe 3.0 x1 slots

SATA 6Gb/s ：6 x SATA 6Gb/s

M.2：1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 (supports PCIe 3.0 x4 and SATA modes)
1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)

SATA RAID：0/1/5/10

Audio Chipset：ROG SupremeFX S1220A High Definition Audio CODEC

Audio Channels：8 Channels
* Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.

LAN Chipset：Intel I219-V

Max LAN Speed：1Gbps

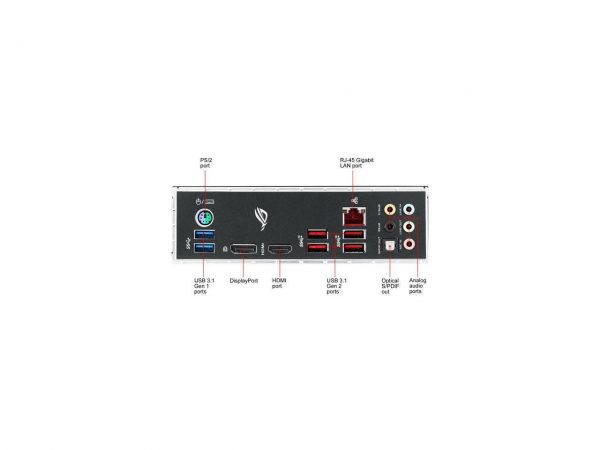

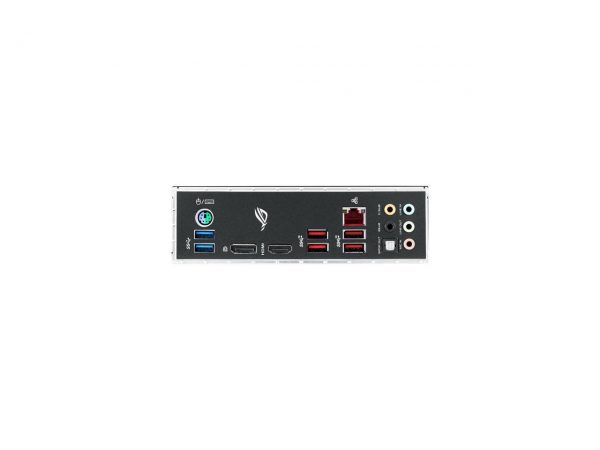

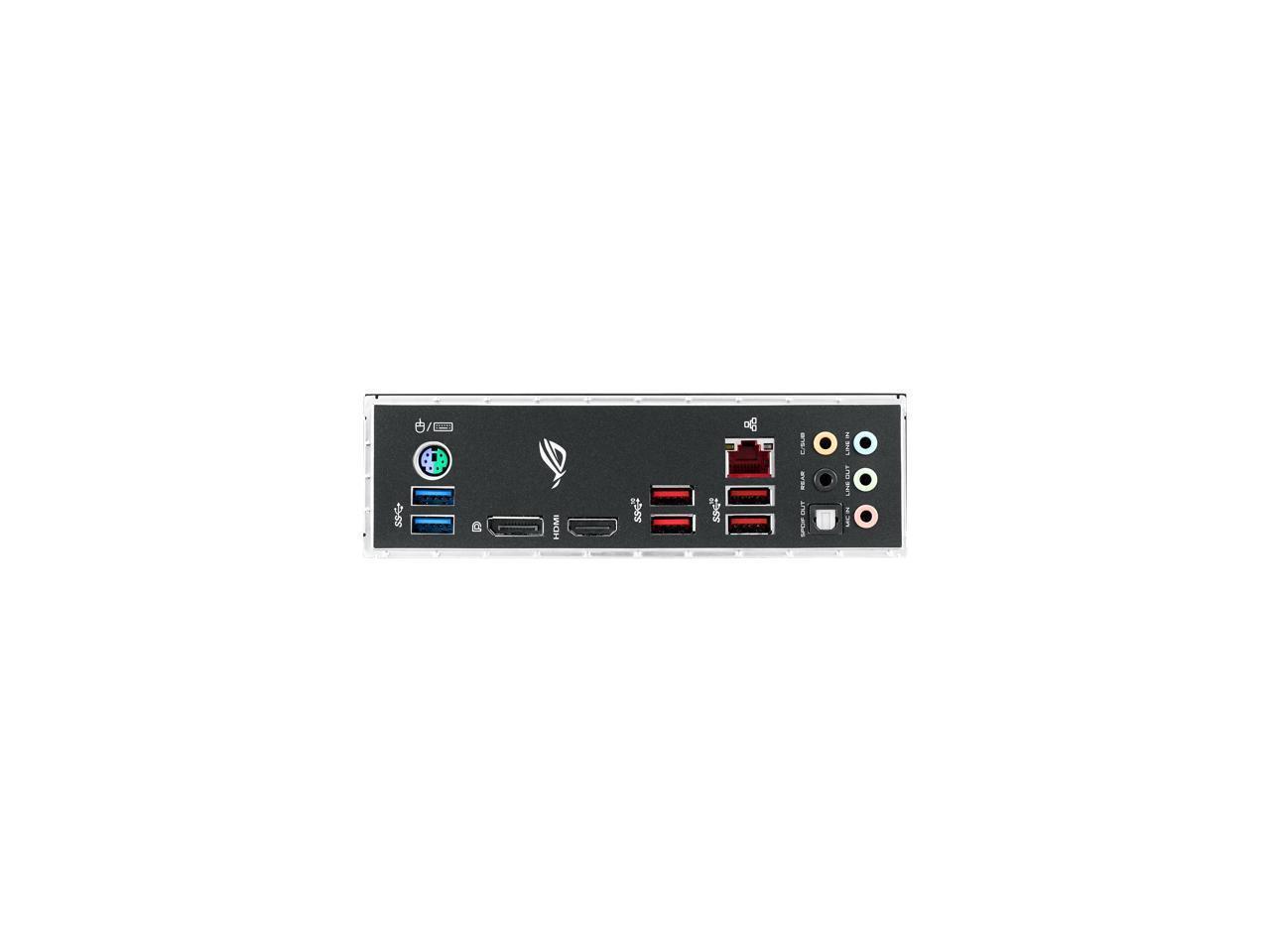

PS/2：1 x PS/2 keyboard/mouse port

HDMI：1 x HDMI

RJ45：1 x Anti-surge LAN (RJ45) port

DisplayPort：1 x DisplayPort

USB 3.1：2 x USB 3.1 Gen1 ports [blue]
4 x USB3.1 Gen2 ports (4 x Type-A [red])

S/PDIF Out：1 x Optical

Audio Ports：5 Ports

Onboard USB：2 x USB 3.1 Gen 1 header supports additional 4 USB 3.1 Gen 1 ports
2 x USB 2.0 header supports additional 4 USB 2.0 ports

Other Connectors：1 x 4-Pin CPU_FAN connector
1 x 4-Pin CPU_OPT fan connector
2 x 4-Pin Chassis fan connectors
1 x 4-Pin AIO_PUMP connector
1 x CPU_OV
1 x Thermal sensor connector
1 x Aura RGB headers
1 x MemOK!_II switch
1 x COM port
1 x TPM connector
1 x Front panel audio connector (AAFP)
1 x System panel connector
1 x Clear CMOS jumper

Form Factor：ATX

LED Lighting：RGB

Dimensions (W x L)：12.0″ x 9.6″

Power Pin：1 x 24-pin EATX power connector
1 x 8-pin EATX 12V power connector

Features：Multi-GPU Support:
Supports NVIDIA 2-Way/Quad-GPU SLI Technology
Supports AMD 3-Way/Quad-GPU CrossFireX Technology

ROG Exclusive Features:
ROG RAMCache III
ROG GameFirst V
ROG CPU-Z
ROG Overwolf

Special Feature:
AURA
– Aura Lighting Control
– Aura RGB Strip Headers
– Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5
– 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
Gamer’s Guardian
– Procool
– SafeSlot
– DIGI+ VRM
– DRAM Overcurrent Protection
– ESD Guards on LAN, Audio and USB3.1/2.0 ports
– Highly Durable Components
ASUS Exclusive Features
– Armoury Crate
– Pre-mounted I/O Shield
– OptiMem II
– 3D Printing Friendly design
– AI Suite 3
– MemOK! II
– AI Charger
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
ASUS Q-Design
– Q-LED (CPU, DRAM, VGA, Boot Device LED)
– Q-Slot
– Q-DIMM

BIOS:
1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1

Manageability:
WOL, PXE

Support DVD:
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)

Operating System Support:
Windows 10 64-bit
